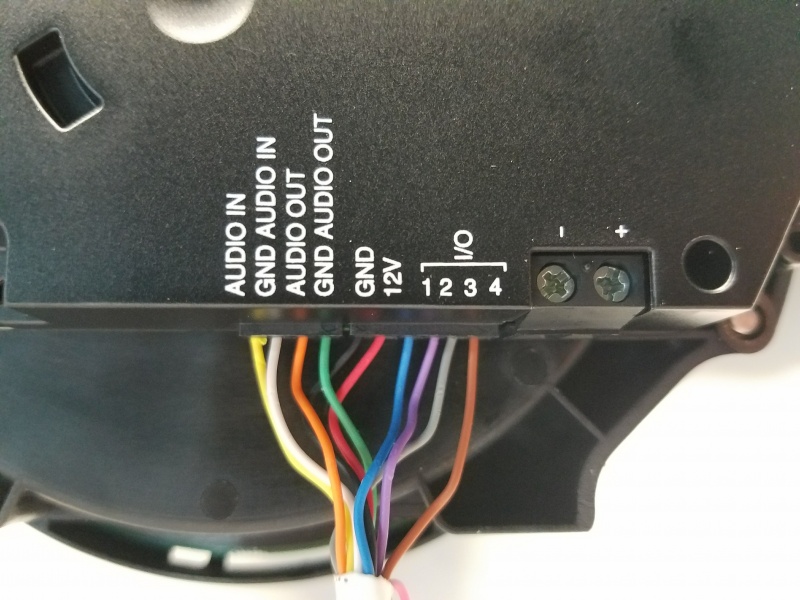

[[File:Pigtail.jpg|800x600px]] | |||
=Three Pigtails= | |||
===Audio=== | ===Audio=== | ||
{|class="wikitable" | {|class="wikitable" | ||
Revision as of 17:15, 16 April 2018
Single Pigtail
| Audio | Yellow | Audio In |
| White | GND Audio In | |
| Orange | Audio Out | |
| Green | GND Audio Out | |
| Power | Red | 12V |
| Black | GND | |
| I/O | Blue | I/O Port 1 |
| Purple | I/O Port 2 | |
| Grey | I/O Port 3 | |
| Brown | I/O Port 4 |
Three Pigtails
Audio
| Red | Audio In |
| Black | GND Audio In |
| Green | Audio Out |
| White | GND Audio Out |
Power
| Red | 12V |
| Black | GND |
I/O
| White | I/O Port 1 |
| Green | I/O Port 2 |
| Black | I/O Port 3 |
| Red | I/O Port 4 |
