M5525 Pigtail

⤺ Back to Axis M5525

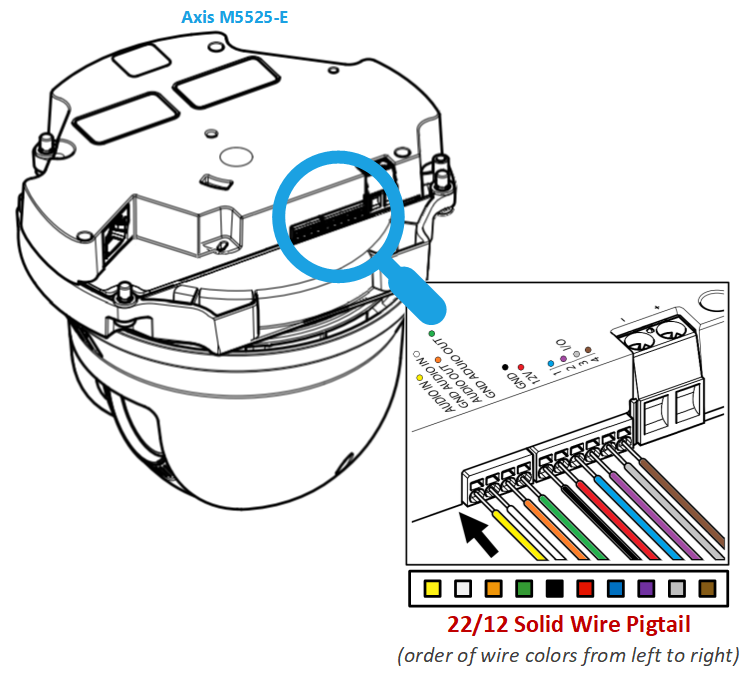

Single Pigtail

Audio	Yellow	Audio In
	White	GND Audio In
	Orange	Audio Out
	Green	GND Audio Out
Power	Red	12V
	Black	GND
I/O	Blue	I/O Port 1
	Purple	I/O Port 2
	Grey	I/O Port 3
	Brown	I/O Port 4

⇧ Back to Top

---

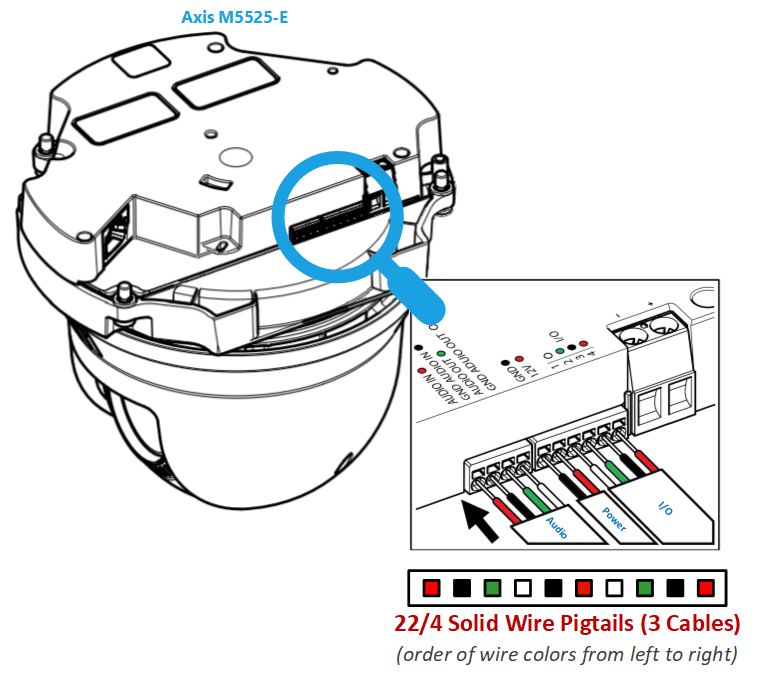

Three Pigtails

Audio	Red	Audio In
	Black	GND Audio In
	Green	Audio Out
	White	GND Audio Out
Power	Red	12V
	Black	GND
I/O	White	I/O Port 1
	Green	I/O Port 2
	Black	I/O Port 3
	Red	I/O Port 4
