Start/Stop Diagrams 2013-2020
Jump to navigation
Jump to search
Wire Diagrams by Camera

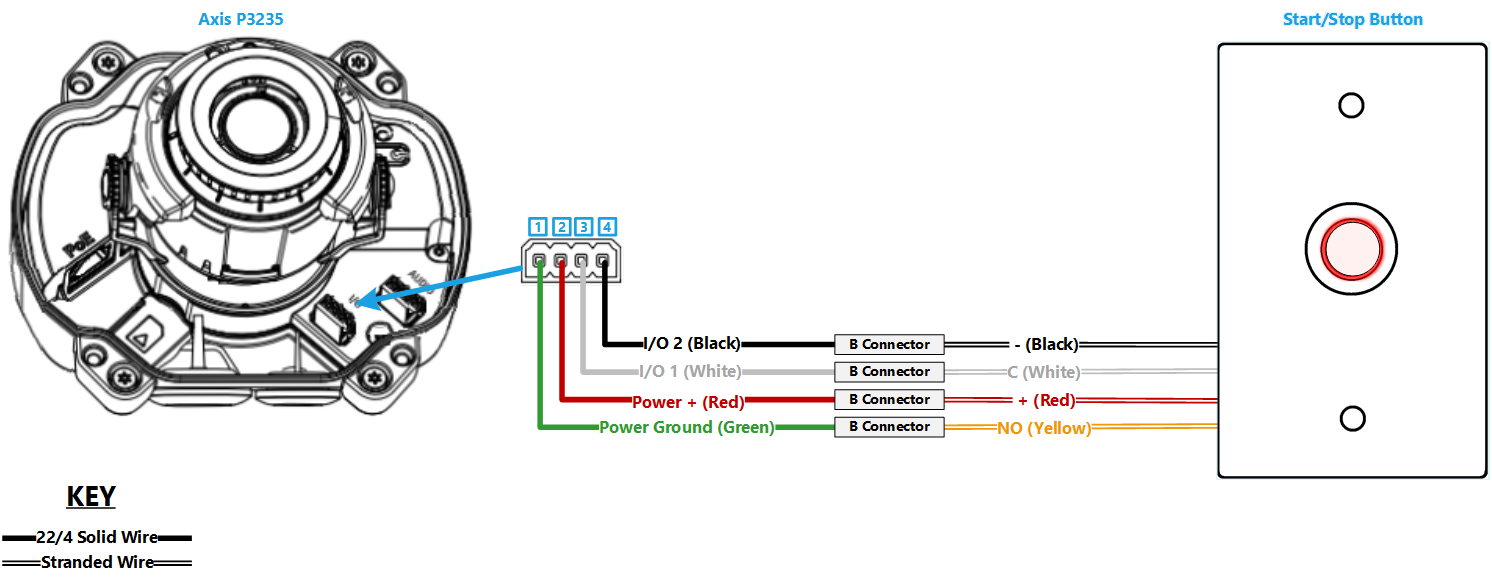

Axis P3235

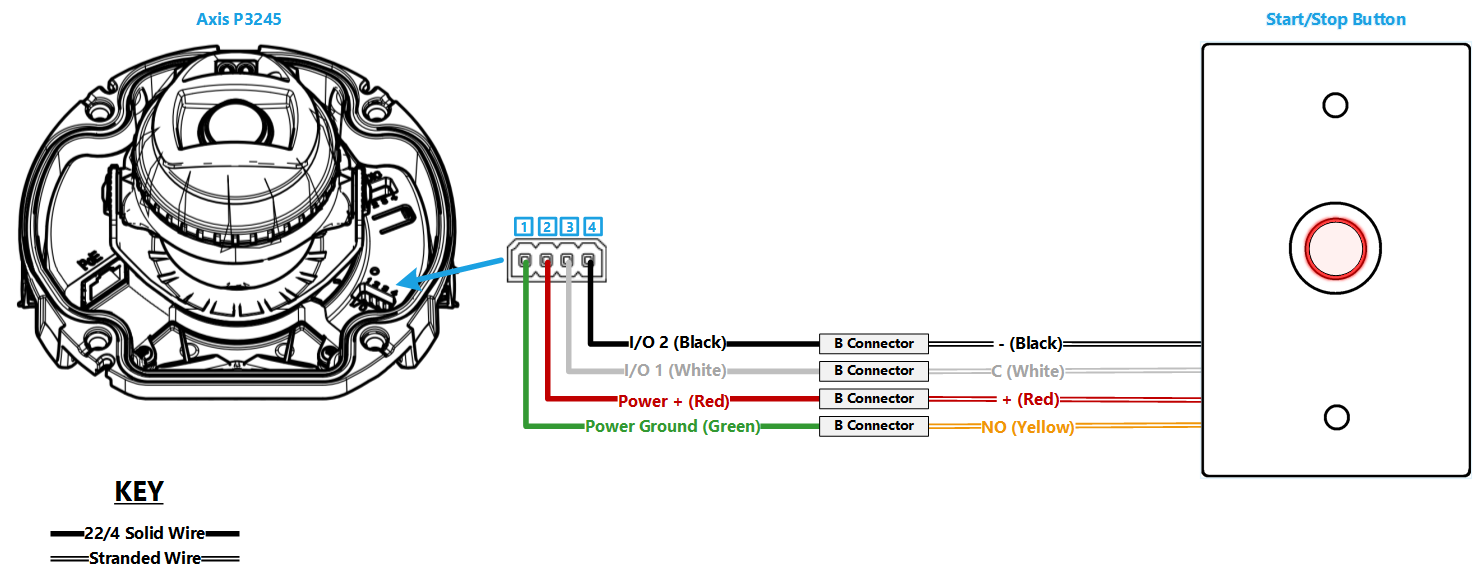

Axis P3245

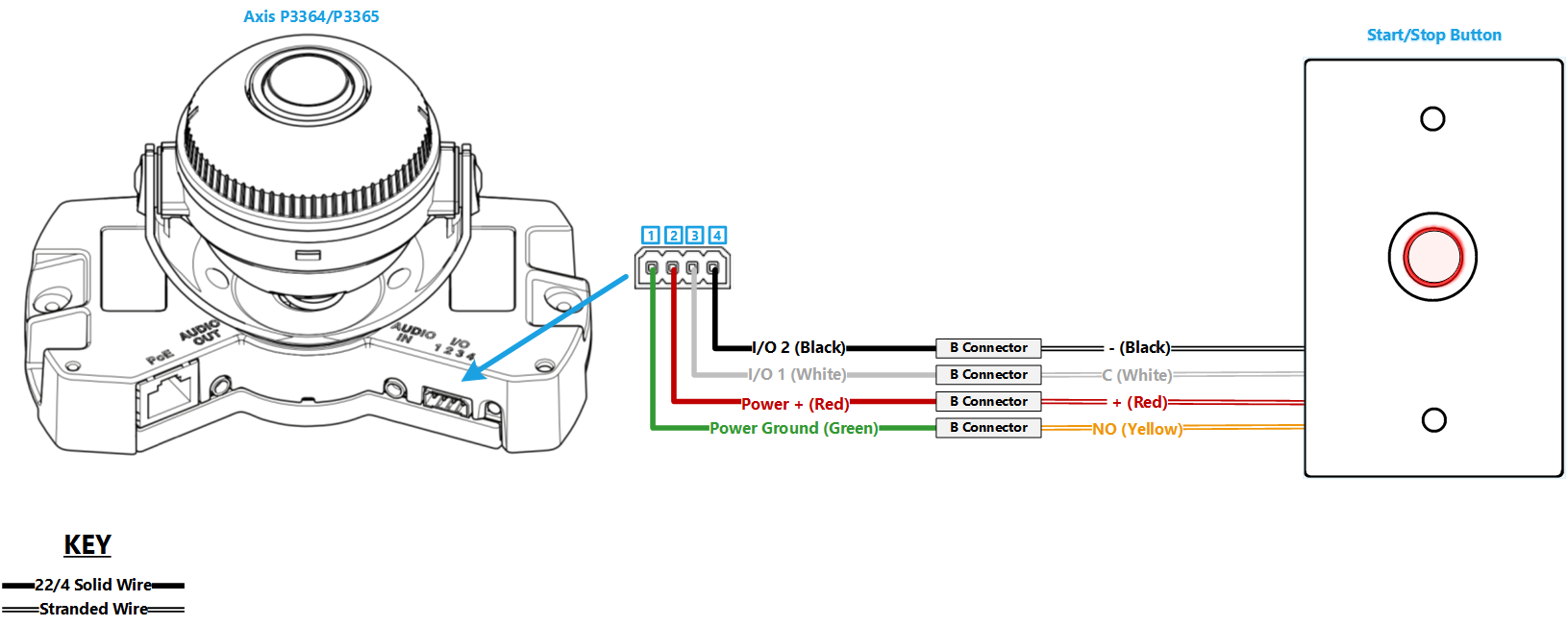

Axis P3364/P3365
Axis P3374/P3375

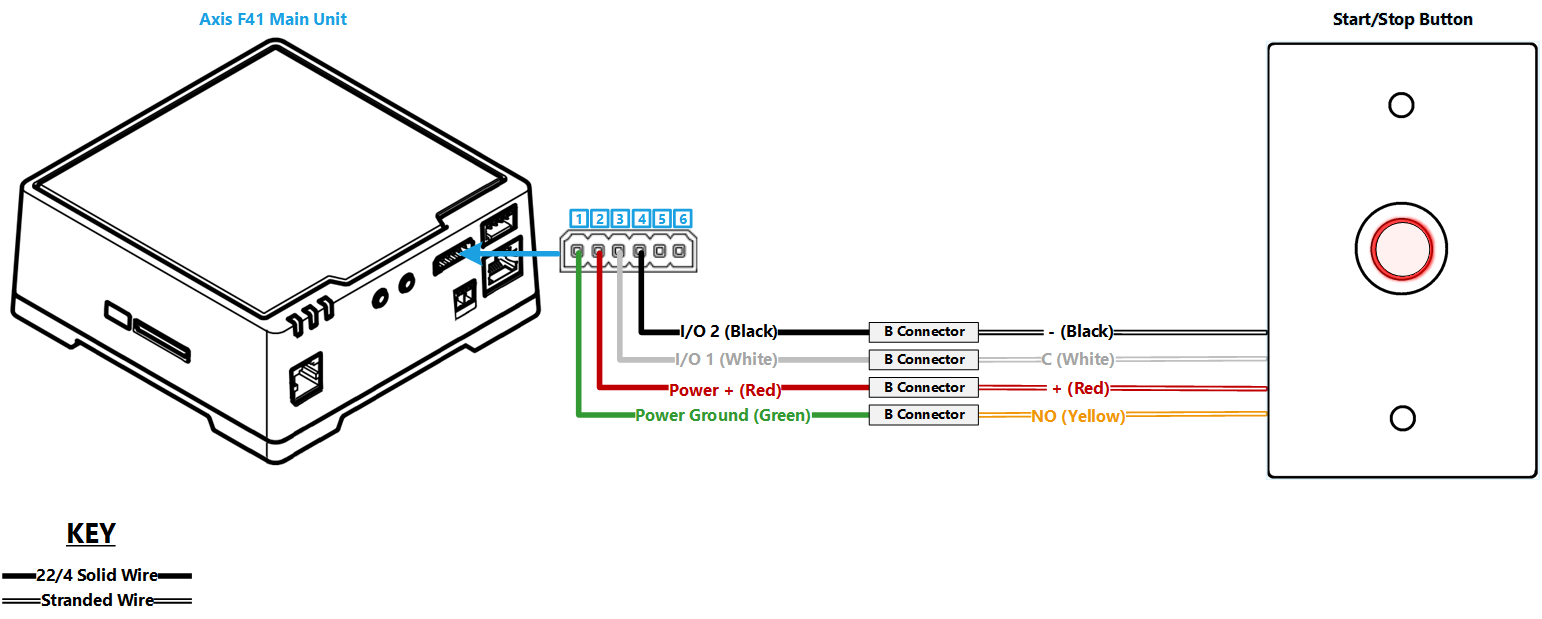

Axis F41

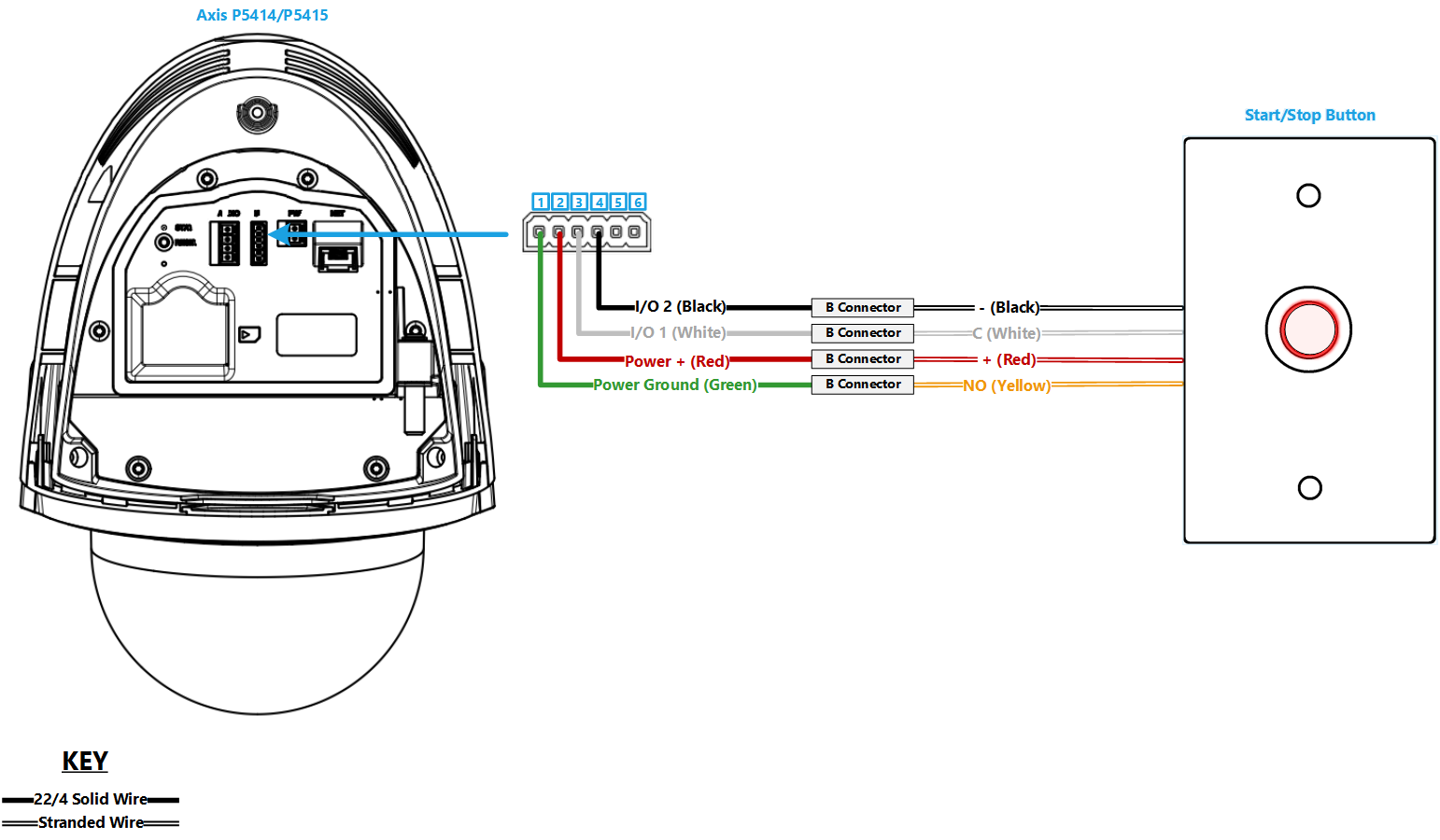

Axis P5414/P5415

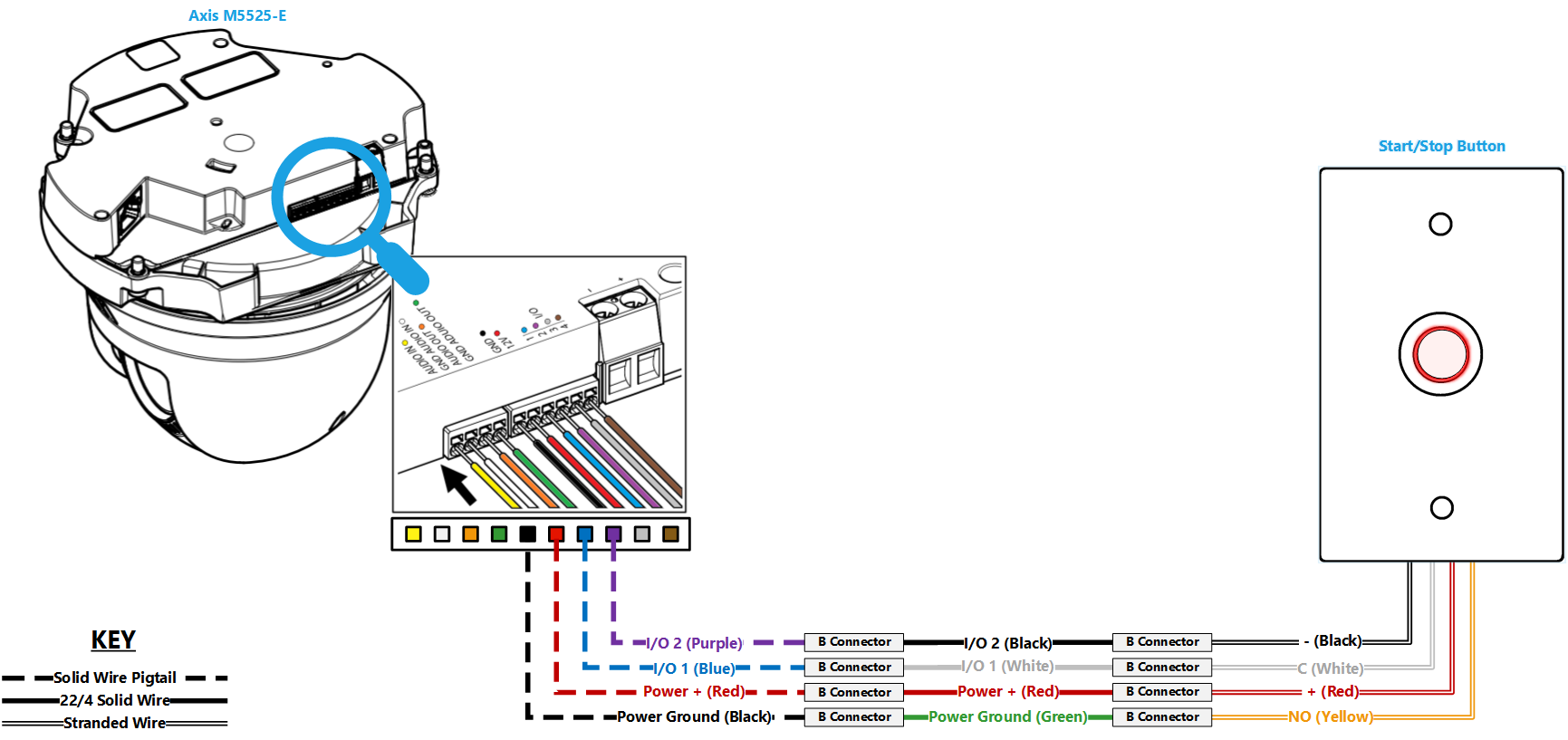

Axis M5525
Axis P5635

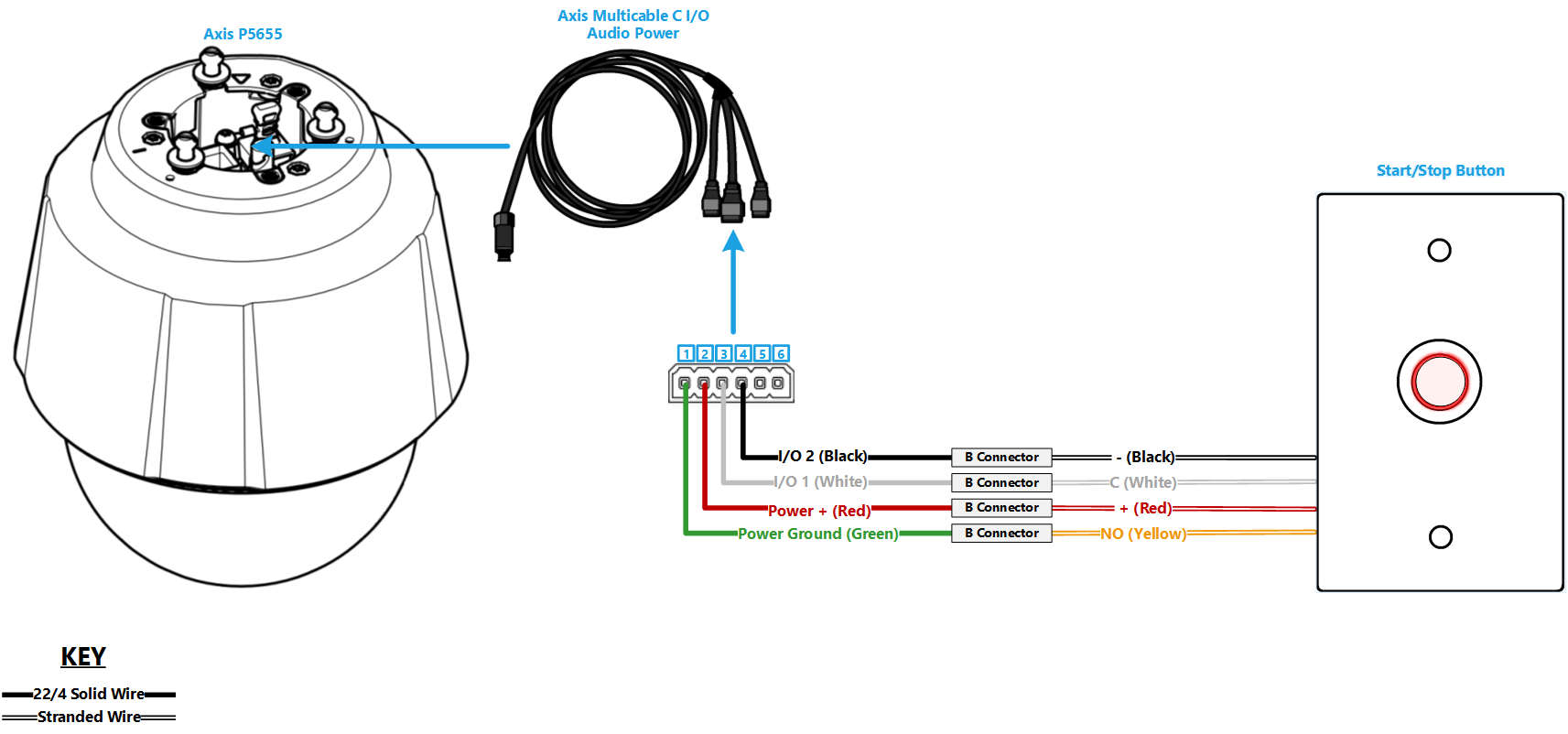

Axis P5655

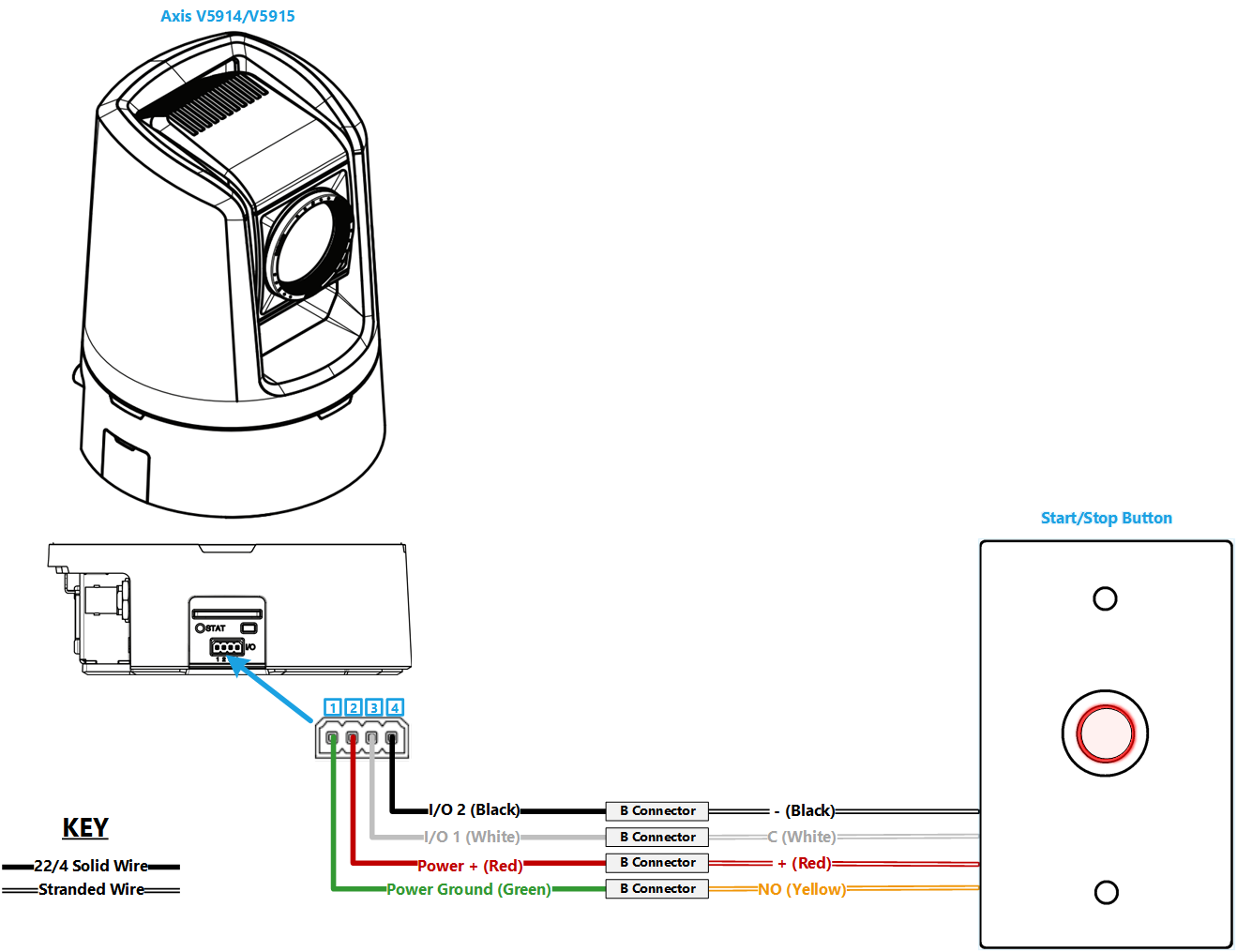

Axis V5914/V5915

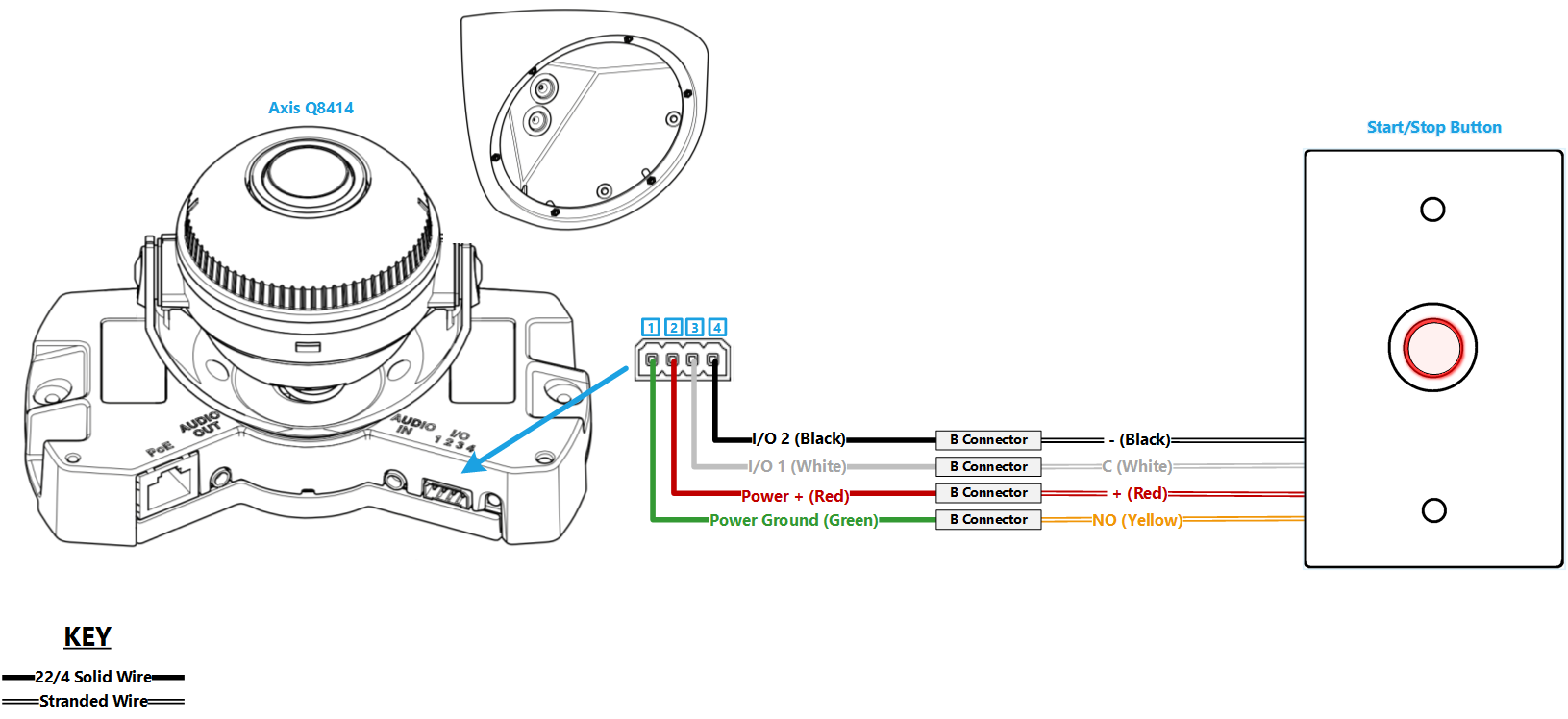

Axis Q8414
Back of Button
| Button | Phoenix Connector |
|---|---|
| NO | Pin 1 |
| + | Pin 2 |
| C | Pin 3 |
| - | Pin 4 |
