Connect an Anchor AN-30 speaker to a Louroe IF-PX

Single Camera

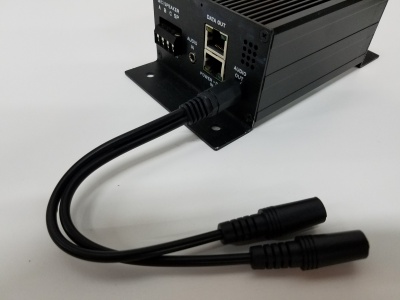

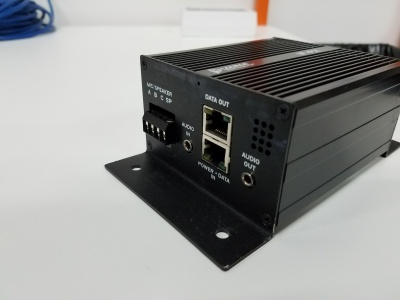

1. Plug a 3.5 mm audio splitter into the the AUDIO OUT port on the IF-PX.

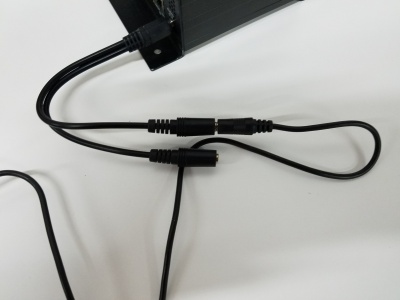

2. Plug a 3.5 mm audio cable into the audio splitter.

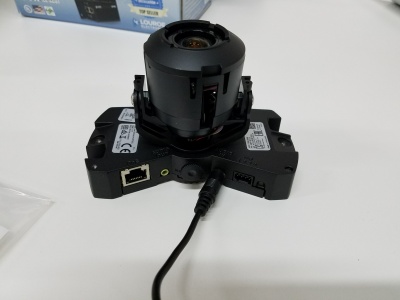

3. Plug the other end of the 3.5 mm audio cable into the AUDIO IN (red) port of the camera.

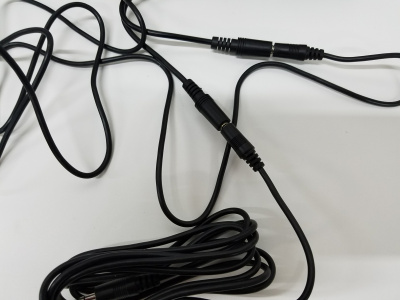

4. Plug another 3.5 mm audio cable into the audio splitter.

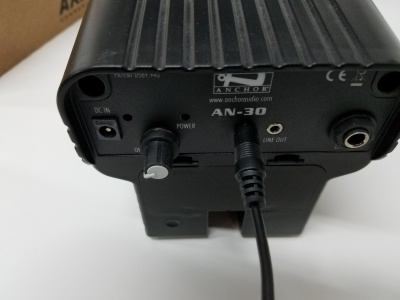

5. Plug the other end of that 3.5 mm audio cable into the Line In port on the Anchor AN-30 speaker.

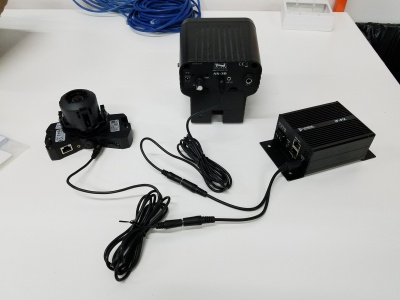

The devices should now be connected, as shown in the picture below:
