Add a USB Key to a VM

There are two types of Wowza licenses. By default, IVS will provide a Wowza license key and a USB key. The steps below are to add the USB key to the VM. If you want to use the VM in a highly available environment, IVS can provide a license-only key that does not require a USB key. Please make sure to request this at the time of order.

---

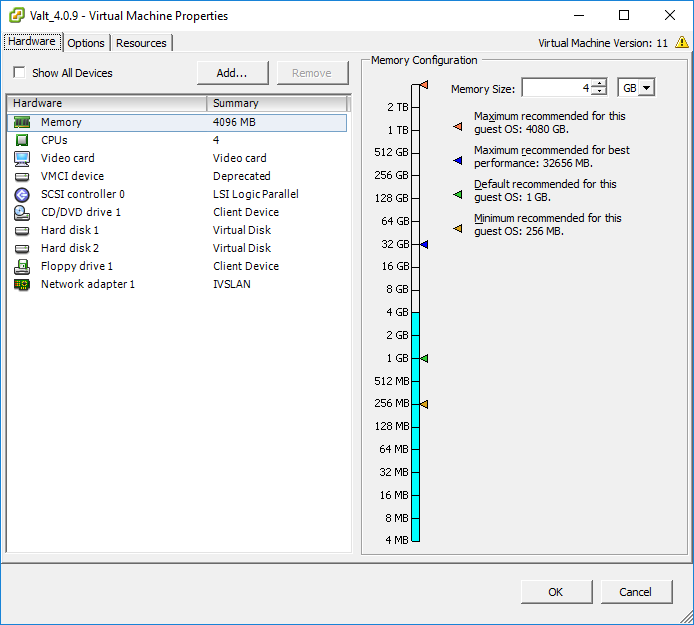

1. Right click on the Virtual Machine in vSphere Client.



2. Select Edit Settings from the menu.



3. Click Add.

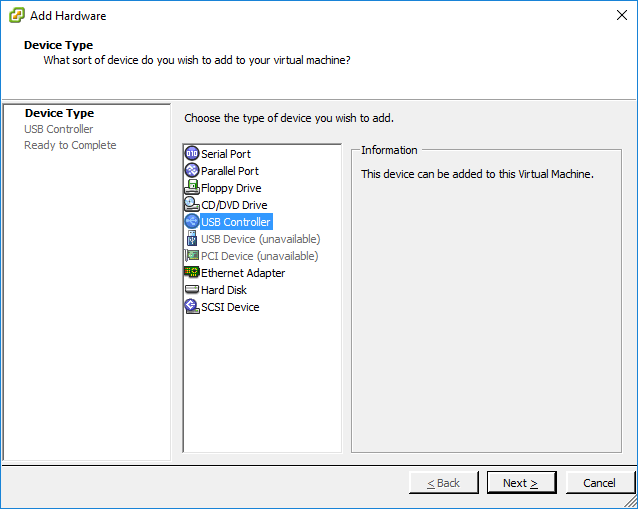

4. Select USB Controller.
5. Click Next.

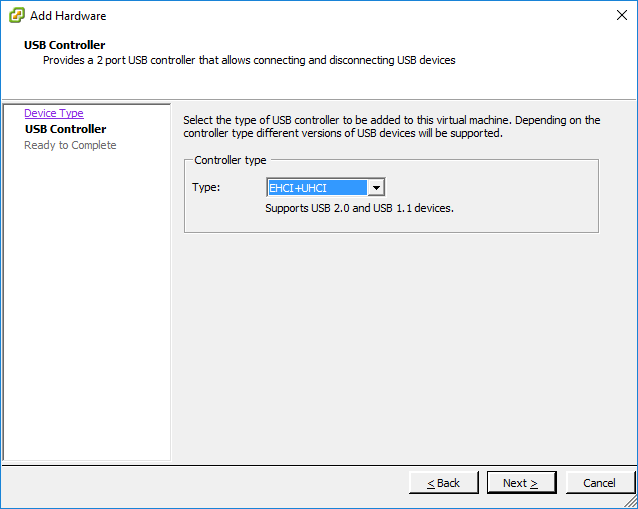

6. Select EHCI+UHCI.
7. Click Next.



8. Click Finish.
9. Click Add.



10. Select USB Controller.
11. Click Next.

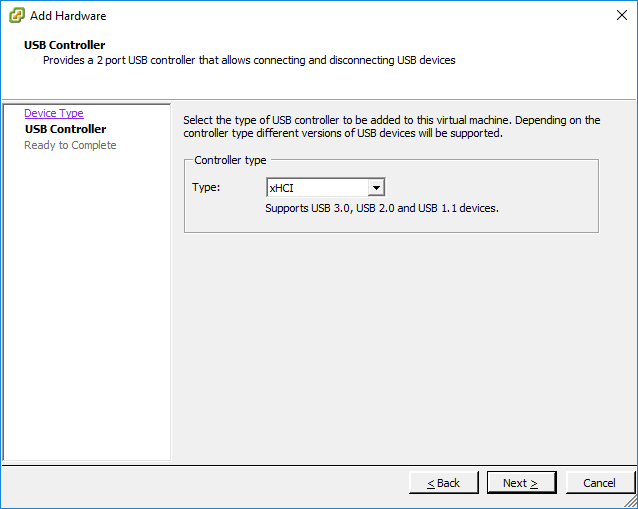

12. Select xHCI.
13. Click Next.



14. Click Finish.
15. Click Add.

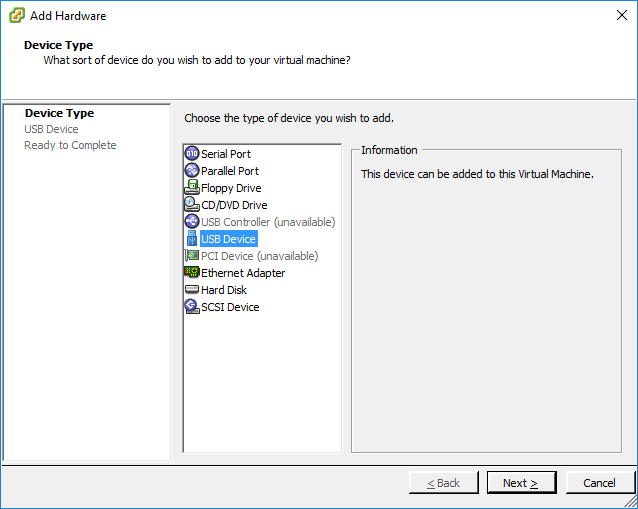

16. Select USB Device.
17. Click Next.

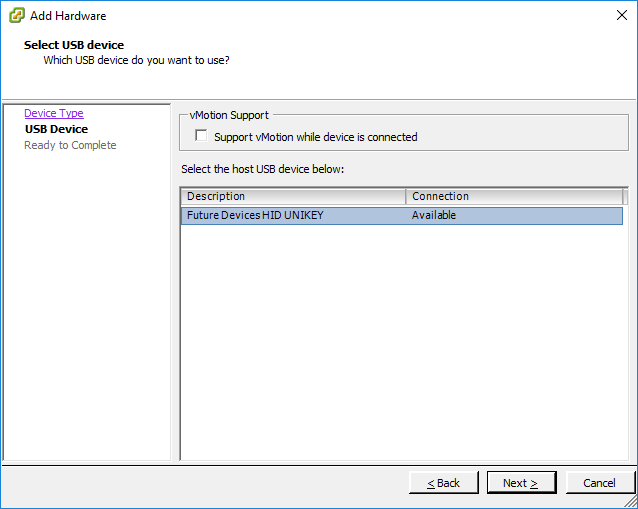

18. Select Future Devices HID UNIKEY.
19. Click Next.



20. Click Finish.
21. Click OK.
